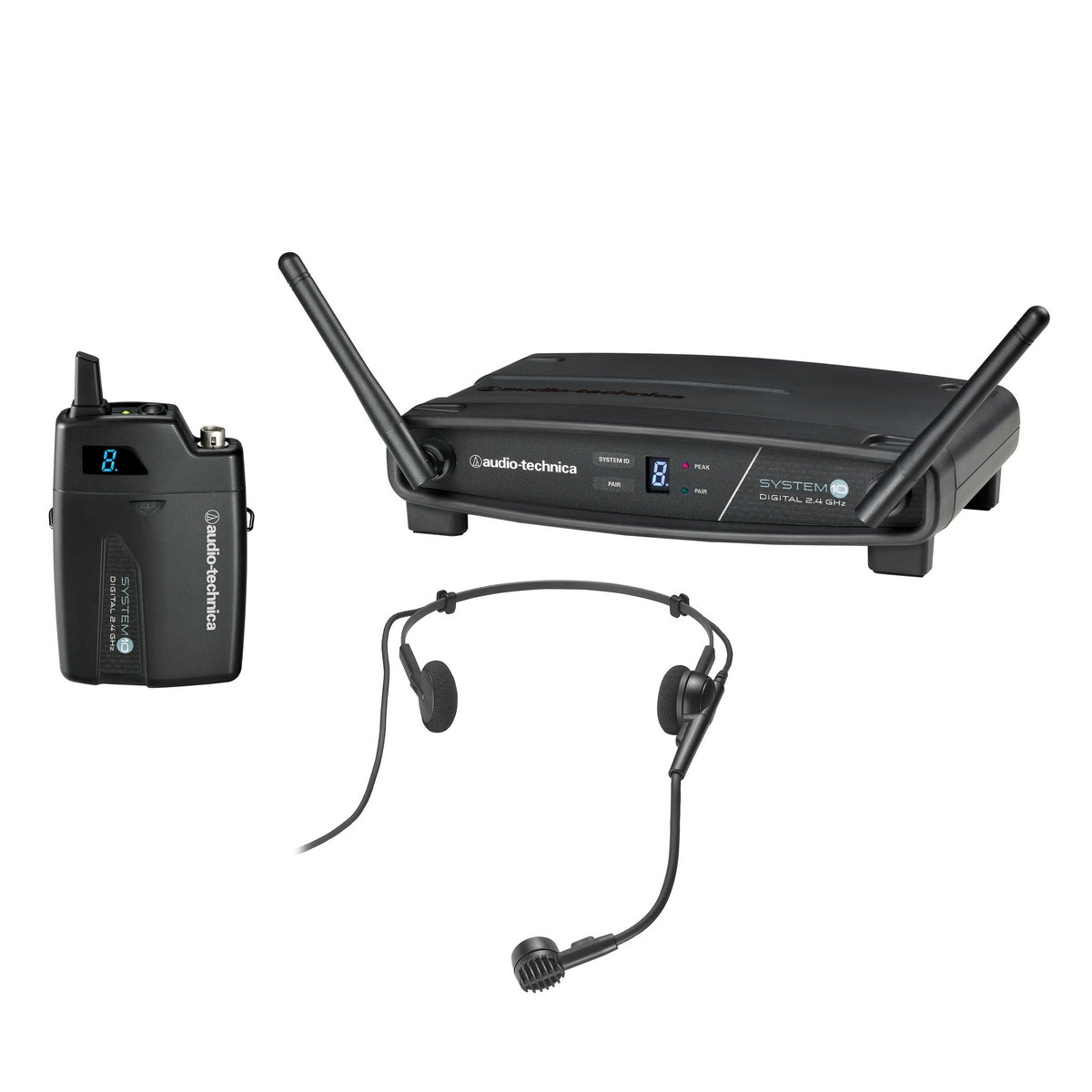

Audio-Technica ATW-1101/H System 10 Wireless Headworn Microphone System

The Audio-Technica ATW-1101/H System 10 Wireless Headworn Microphone System is a state-of-the-art digital wireless system built for musicians, presenters, and public speakers. It offers advanced 24-bit operation for high-fidelity audio, quick and effortless setup, and an impressively clear and natural sound quality. Operating in the 2.4 GHz range, this microphone system is designed to avoid interference from TV and DTV signals, ensuring you can perform without any disruption.

Audio-Technica’s System 10 provides users with a robust and reliable digital wireless solution that includes a combination of Frequency, Time, and Space Diversity technologies. These three levels of naversity ensure interference-free operation by dynamically allocating frequencies, sending signals through multiple time slots, and using dual antennas on both the transmitter and receiver. This sophisticated approach guarantees optimal signal integrity and clear communications.

Perfect for live performances, lectures, and other professional audio applications, the System 10 is available in multiple configurations, including handheld vocal microphones and UniPak transmitters compatible with lavalier, headworn, and instrument microphones, as well as electric guitars. The included ATW-R1100 receiver boasts a digital display for easy navigation and configuration, along with essential features like volume control and peak indicators.

Key Features

• Extremely easy operation with instantaneous channel selection, sync, and setup
• State-of-the-art digital receiver for reliable performance
• Balanced XLR and unbalanced 1/4 output jacks with level control
• Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance
• 2.4 GHz range completely free from TV interference
• Three levels of naversity assurance: frequency, time, and space
• Automatic frequency selection for seamless, interference-free operation

Specifications

• Operating Frequencies: 2.4 GHz ISM band
• Dynamic Range: >109 dB (A-weighted), typical
• Total Harmonic Distortion: <0.05% typical
• Operating Range: 30m (100′) typical
• Operating Temperature Range: 0°C to +40°C (32°F to 104°F)
• Frequency Response: 20 Hz to 20 kHz
• Audio Sampling: 24 bit / 48 kHz
• Receiver – Receiving System: Diversity (frequency/time/space)
• Receiver – Maximum Output Level: XLR, balanced: 0 dBV; 1/4″ (6.3 mm), unbalanced: +6 dBV
• Receiver – Power Supply: 100-240V AC (50/60 Hz) to 12V DC 0.5A (center positive) switched mode external power supply
• Unipak Transmitter – RF Output Power: 10 mW
• Unipak Transmitter – Spurious Emissions: Following federal and national regulations
• Unipak Transmitter – Input Connection: 1x 4-pin locking connector
• Unipak Transmitter – Batteries: Two 1.5V AA
• Unipak Transmitter – Battery Life: >7 hours (alkaline)
• Microphone – Element: Dynamic
• Microphone – Polar Pattern: Hypercardioid
• Microphone – Frequency Response: 200 Hz – 18 kHz
• Microphone – Open Circuit Sensitivity: -55 dB (1.7 mV) re 1V at 1 Pa
• Microphone – Impedance: 600 ohms
• Microphone – Connector: Locking 4-Pin HRS connector
• Microphone – Cable Length: 55″ (1.4 m)
• Microphone – Headset nominal: 4.72″ / 11.98cm
• Microphone – Flexible boom: 3.17″ / 8.05cm
• Microphone – Diameter: 0.80″ / 2.03cm
• Dimensions (W x H x D): Receiver: 7.48 x 1.82 x 5.06″ / 18.99 x 4.62 x 12.85cm; Unipak Transmitter: 2.76 x 4.21 x 0.98″ / 7.01 x 10.69 x 2.48cm
• Weight: Receiver: 290 g (10.22 oz); Unipak Transmitter: 100 g (3.52 oz); Microphone: 2.1 oz (59.53 g)

Package Contents

• Audio-Technica ATW-T1001 System 10 Digital UniPak Transmitter
• ATW-R1100 System 10 Digital Wireless Receiver
• PRO 8HEcW Headworn Hypercardioid Dynamic Mic
• Large Foam Windscreen for Headworn Microphone
• Small Foam Windscreen for Headworn Microphone
• AT8439 Clothing Clip
• Power Supply
• Audio-Technica Warranty
