Audio-Technica AT81CP Conical Cartridge for P-Mount Turntables Free Shipping Inexpensive

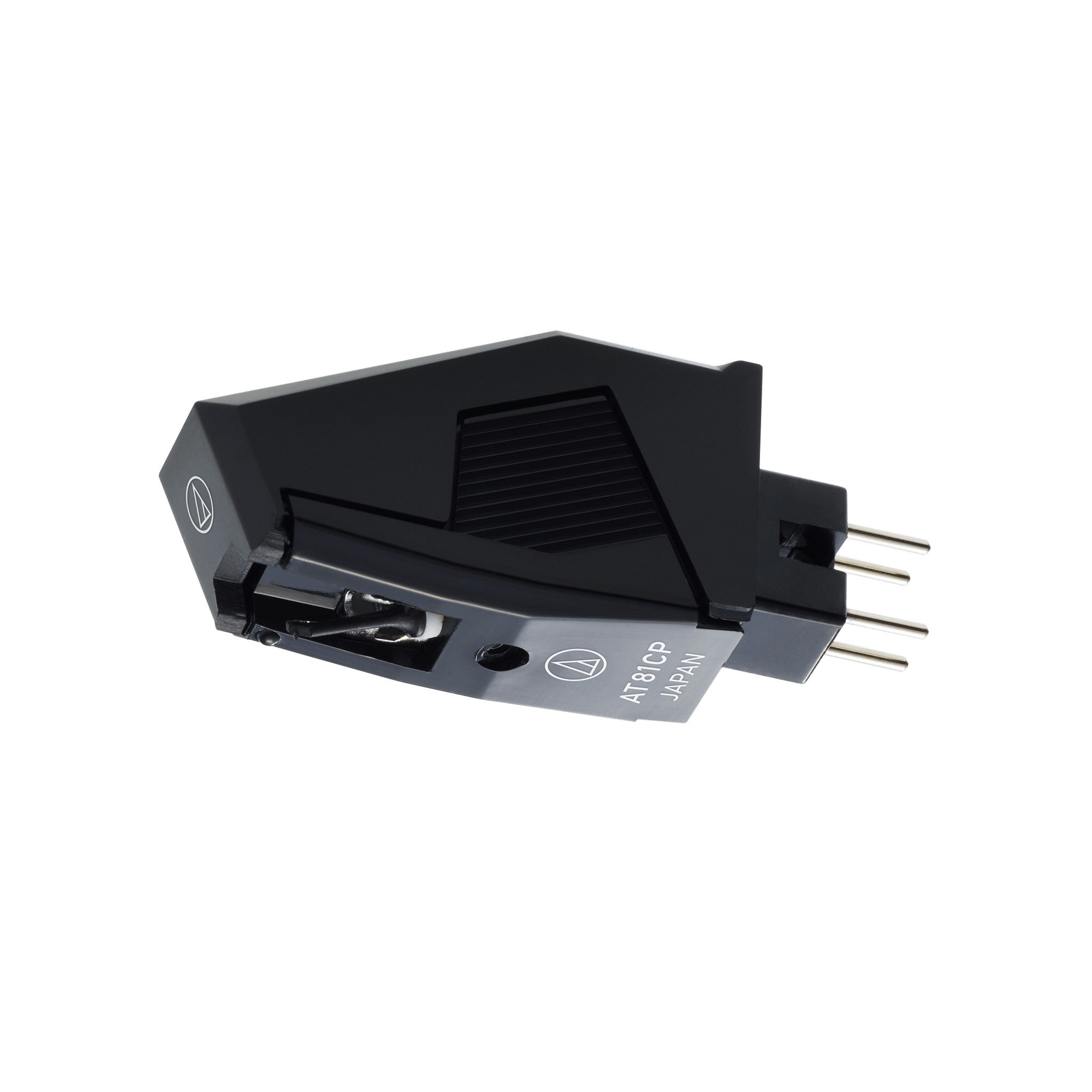

Audio-Technica AT81CP Conical Cartridge for P-Mount Turntables

This 0.6 mil conical cartridge fits P-mount turntables.

Key Features

• Compatible with P-mount turntables
• 0.6 mil conical cartridge

Technical Specifications

Cartridge & Stylus
Frequency Response
20-20,000 Hz
Channel Separation
18 (dB at 1 kHz)
Vertical Tracking Angle
20°
Vertical Tracking Force
1.0-1.5 g (1.25 g standard)
Stylus Construction
Bonded round shank
Recommended Load Impedance
47,000 ohms
Coil Impedance
2.8 k ohms (1 kHz)
DC Resistance
410 ohms
Coil Inductance
400 mH (1 kHz)
Output Voltage
3.5 mV (1 kHz, 5 cm/sec.)
Output Channel Balance
2.5 dB (1 kHz)
Stylus Shape
0.6 mil conical
Cantilever
Carbon fiber-reinforced ABS
Mounting
P-mount
Dimensions
15.3 mm (0.60”) H x 10.0 mm (0.39”) W x 35.1 mm (1.38”) D
Mounting Feature
P-mount
Recommended Load Capacitance
100 to 200 pF
Replacement Stylus
ATN81CP
Stylus Size
0.6 mil
Type
Dual Magnet
Weight
6.0 g (0.21 oz)
