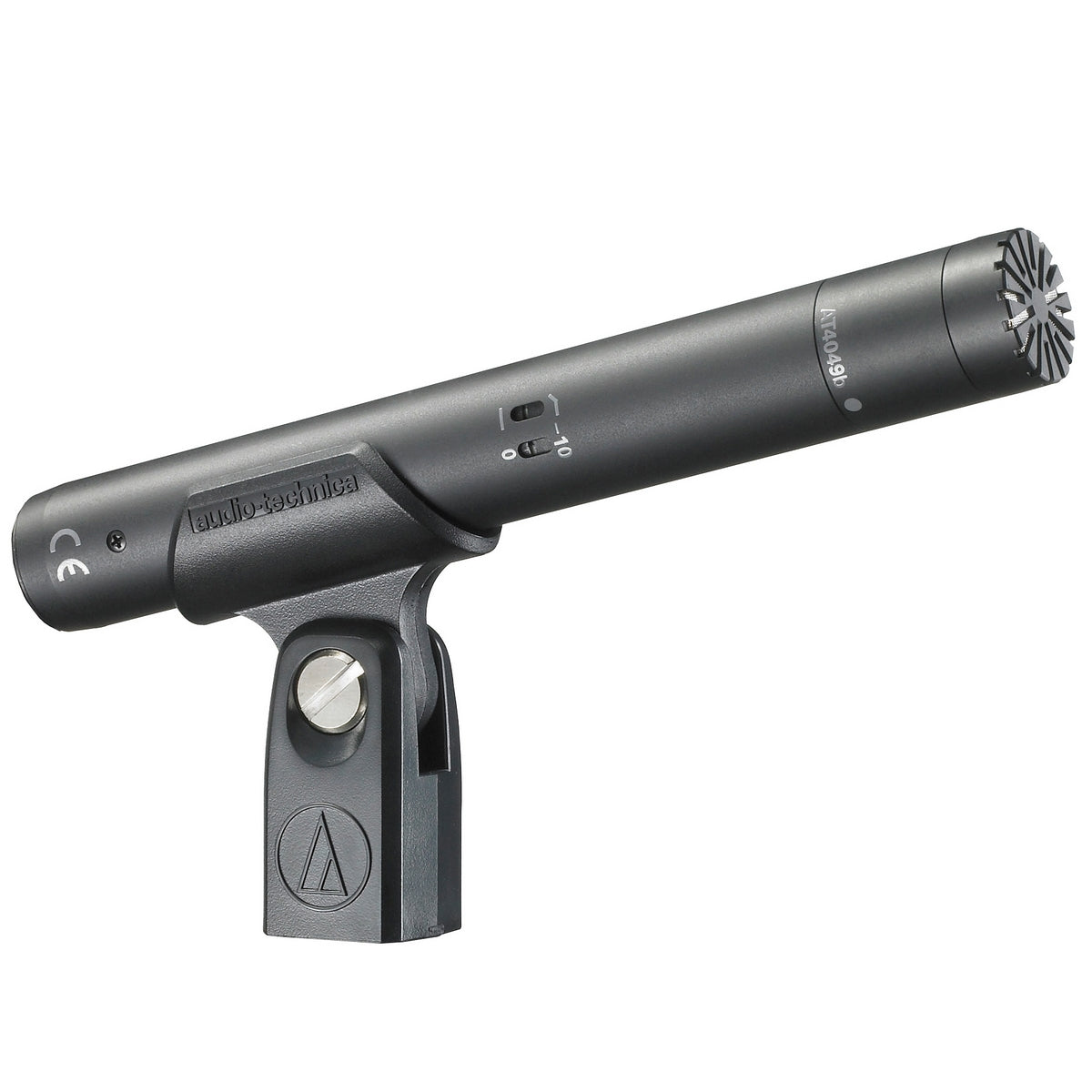

Audio-Technica AT4049b Omnidirectional Broadcast Recording Condenser Microphone

The Audio-Technica AT4049b Omnidirectional Broadcast Recording Condenser Microphone is specifically designed for professional recording and critical applications in broadcast environments. This versatile microphone can confidently be used in a wide array of professional miking scenarios. With its direct-coupled balanced outputs, the AT4049b ensures clean signals even in high-output conditions, eliminating the distortion typically associated with conventional transformer-coupled outputs. The microphone’s fast transient response contributes to its open, transparent reproduction, making it ideal for capturing even the most challenging instruments. In compliance with the EU directive on the reduction of hazardous substances (RoHS), the AT4049b is completely free from all specified harmful substances.

The AT4049b consists of two modular subassemblies: the AT4900b-48 body and the AT4049b-EL omnidirectional head capsule, both available separately. Additionally, users can opt for interchangeable capsules available in cardioid (AT4051b-EL) and hypercardioid (AT4053b-EL) patterns, allowing for greater versatility in various recording scenarios.

Key Features

• Specially engineered for professional recording, broadcast, and sound reinforcement
• Omnidirectional polar pattern for maximum ambient pickup
• Direct-coupled, balanced output for clean signals under high-output conditions
• Transformerless circuitry eliminates low-frequency distortion and enhances high-speed transient response
• Switchable 80 Hz high-pass filter and 10 dB pad
• Durable turned-brass microphone housing for long-lasting reliability
• RoHS-compliant and free from all substances specified in the EU directive on the reduction of hazardous substances

Specifications

• Element: Externally polarized (DC bias) capacitor
• Polar Pattern: Omnidirectional
• Frequency Response: 20-20,000 Hz
• Low Frequency Roll-Off: 80 Hz, 12 dB/octave
• Open Circuit Sensitivity: -34 dB (19.9 mV) re 1V at 1 Pa
• Impedance: 50 ohms
• Maximum Input Sound Level: 145 dB SPL, 1 kHz at 1% T.H.D.; 155 dB SPL, with 10 dB pad (nominal)
• Noise: 16 dB SPL
• Dynamic Range (typical): 129 dB, 1 kHz at Max SPL
• Signal-to-Noise Ratio: 78 dB, 1 kHz at 1 Pa
• Phantom Power Requirements: 48V DC, 4.8 mA typical
• Switch: Flat, roll-off; 10 dB pad (nominal)
• Weight: 130 g (4.6 oz)
• Dimensions: 155.0 mm (6.10″) long, 21.0 mm (0.83″) maximum body diameter
• Output Connector: Integral 3-pin XLRM-type
• Optional Interchangeable Elements: AT4051b-EL (cardioid); AT4053b-EL (hypercardioid)
• Audio-Technica Case Style: S1

Package Contents

• AT8405a stand clamp for 5/8″-27 threaded stands
• Windscreen
• Protective carrying case
