Audinate ADP-DAI-AU-1X0 Dante AVIO Analog Input Adapter Low Pice

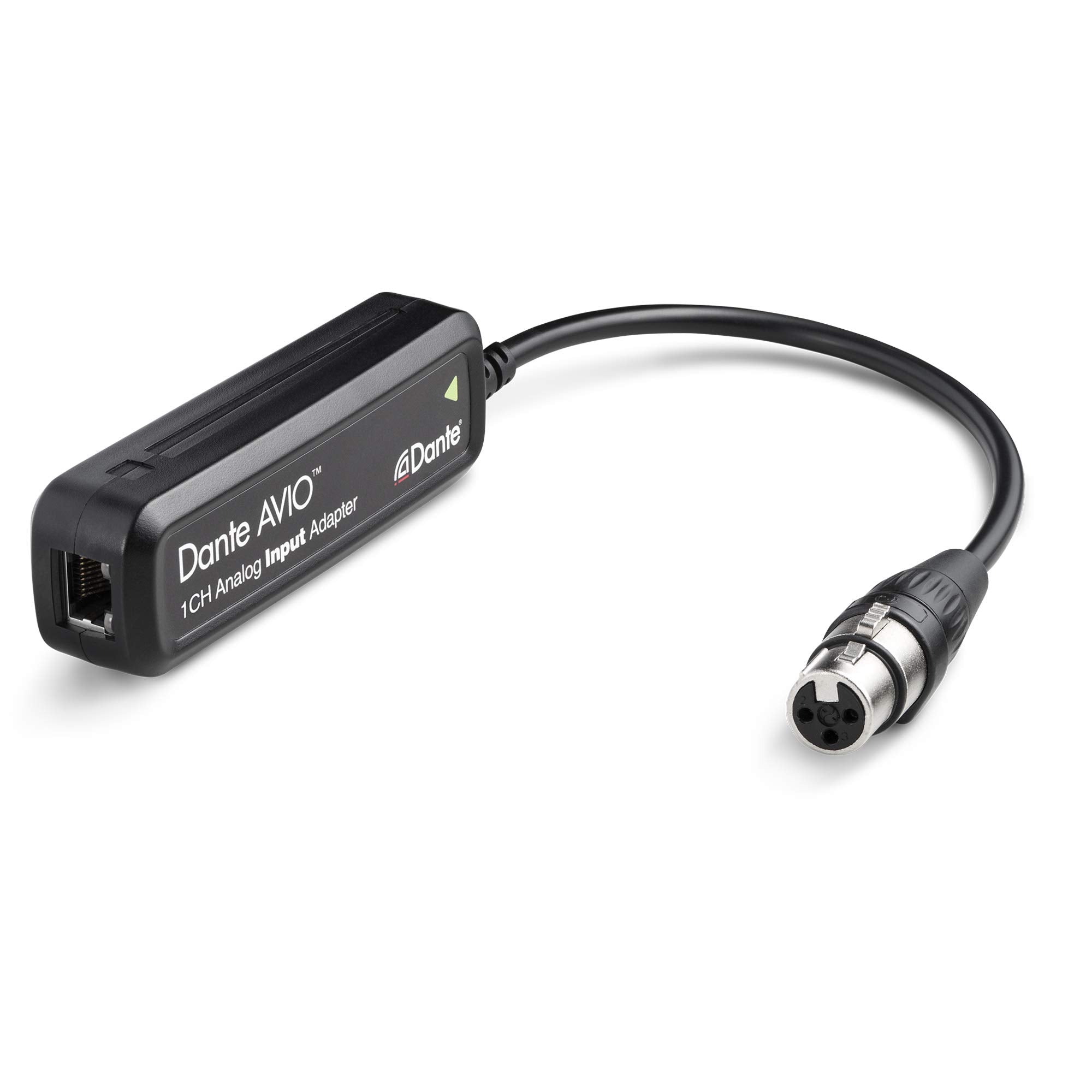

Audinate ADP-DAI-AU-1X0 Dante AVIO Analog Input Adapter

The Audinate ADP-DAI-AU-1X0 Dante AVIO Analog Input lets you use analog audio line-level source gear you already own to feed any Dante-connected system. Don’t abandon trusted mixing consoles, wireless mics and other analog sources – adapt them to the world of audio networking with Dante AVIO.

Key Features

• 1 Channel
• Connect legacy mixers and consoles to a Dante network
• Patch DSPs, analog compressors and equalizers into a Dante system using a combination of Dante AVIO Input and Output adapters
• Connect stage DI boxes and keyboard instruments directly to a Dante network

Technical Specifications

Channels
1
Max Signal Level(balanced)
+24dBu / +4dBu / 0dBu; 0dBV /-10dBV
Frequency Response
20Hz to 20kHz (±0.5dB)
Impedance
20k Ohm balanced 10k Ohm unbalanced
Dynamic Range
> 100dB
Signal to Noise Ratio
> 100dB
Total Harmonic Distortion
< 0.01% at +4dBu
Connectors
RJ45 & 1 XLR-F
Power
Class 1 802.3af PoE
Sample Rates
44.1, 48, 96 kHz
Bit Depth
24
Network Transport
Dante Audio over IP AES67 RTP
