Atlas Sound FS12T-94 12 Inch 2-Way Multipurpose Horn Speaker System, 90 x 40 Degrees

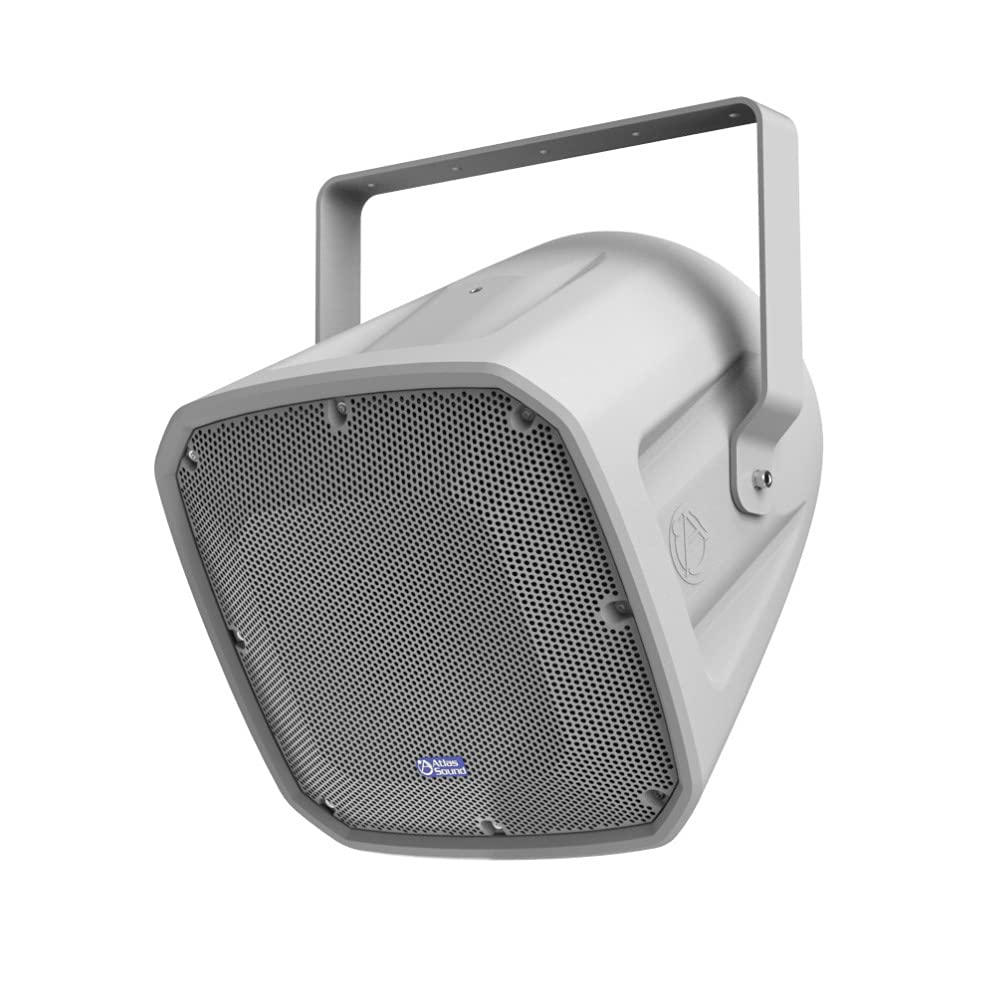

The FS12T-94 is two-way, full-range speaker system engineered to provide excellent voice and music reproduction in applications requiring weather resistance. It was designed to withstand exposure to environmental conditions and provide long-lasting reliability. It incorporates a 12″ LF driver and 1″ exit HF compression driver concentrically mounted to a high-directivity waveguide. It provides 90 x 40 coverage and is tuned for optimal source reproduction.

Key Features

• All-Weather Construction Ensures Long-Term Reliability Through Varying Seasons
• 400 Watts Power Handling
• Constant Directivity Design Offers Controlled Coverage of 90 Horizontal by 40 Vertical (2kHz Octave Band)
• Driver Compliment Includes 12″ Cast Frame Woofer with a Concentrically Mounted 1″ Exit Compression Driver
• Easy, Weather Resistant Connection via a Convenient Recessed Terminal Block Located on the Back of the Loudspeaker
• Includes a Built-In, High Efficiency 400 Watt 70.7V Transformer
• Four Eyebolt Inserts for Multiple Mounting Capabilities
• Heavy Duty Mounting Bracket (Included) Allows for Easy Installation to Most Any Flat Surface
• Easy Service Design Allows Transducers to be Serviced in the Field without Uninstalling the Enclosure from the Mount

Technical Specifications

Power Taps
400, 200, 100, 50 Watts & 4 bypass
Sensitivity
102.5dB SPL
Frequency Response
80Hz – 17.6kHz
Height
19.56″ (49.78 cm)
Driver Type
1″ HF and 12″ LF
Depth
18.5″ (46.9 cm)
Dispersion
90 H x 40 V
Environment
IP45
MAX SPL
128.5dB SPL
Width
18.5″(46.9 cm)
Weight
48.00 lbs (21.77 kgs)
Color
Pantone 423 C – RAL 7045
