Atlas Sound BMT95-8 Blind Mount 8 Inch Enclosure 5 Inch Deep

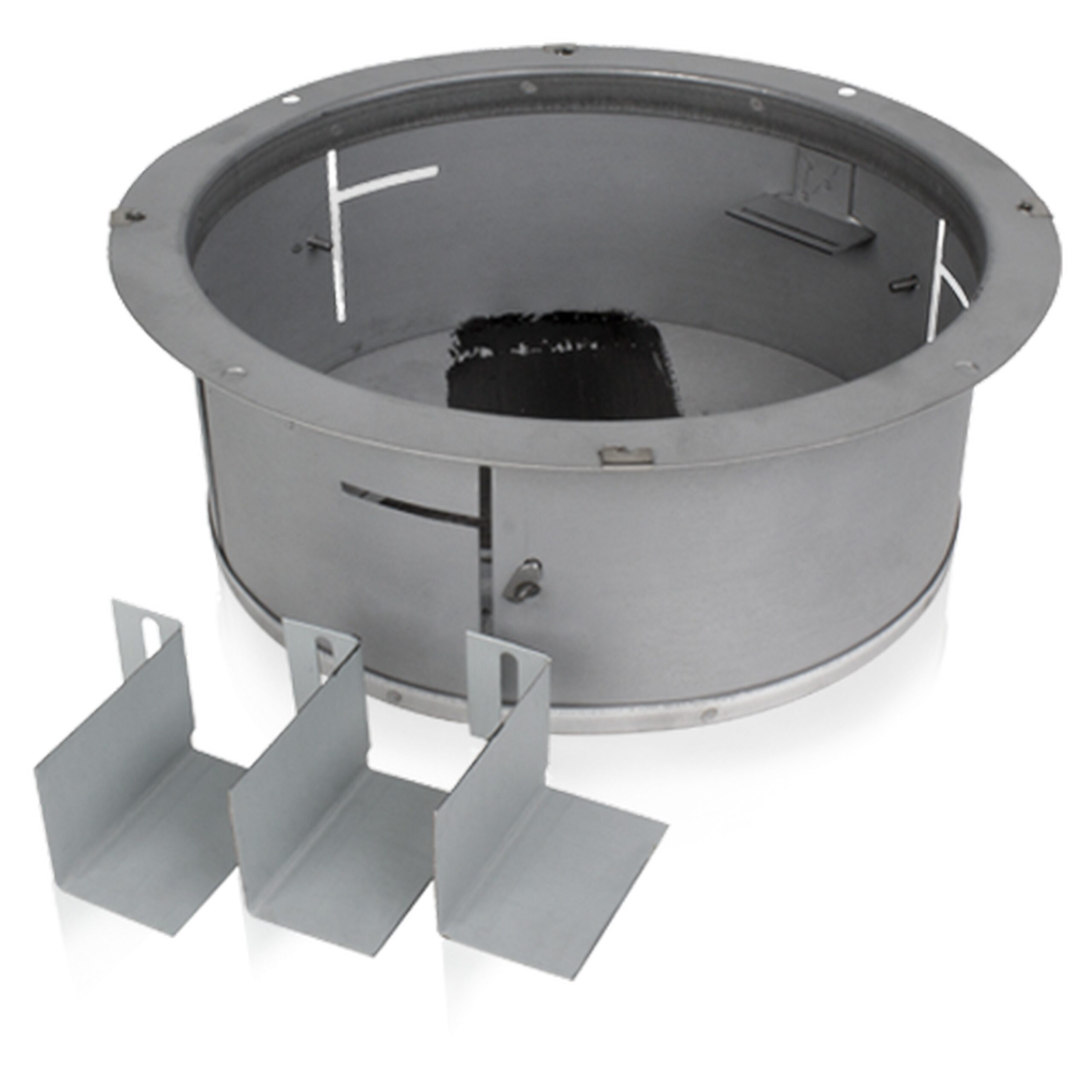

AtlasIED 8″ Blind-Mount enclosure systems ( U.S. Patent # 4,673,149 ) provide an easy and cost-effective alternative for secure speaker installation in retrofit ceiling applications. All necessary hardware is provided including a unique support system with mounting ears that telescope out from inside the enclosure and adjust vertically to accommodate ceilings with a thickness of 1/2″ (13mm) to 1 3/8″ (35mm). Units feature CRS construction and include torsion-spring receptacles for quick mounting of torsion-spring grilles. (J-Nuts are included on the return of the enclosure to accommodate surface-mounting grilles.)

Key Features

• Mounting Ears Adjust Vertically to Accommodate Varying Ceiling Thicknesses
• Quick Mounting of Torsion-Spring and Surface-Mounting Loudspeaker Grilles
• Support System Enables Enclosure Installation in Retrofit Ceiling Applications

Technical Specifications

Depth
4 1/2″ (11.43 cm)
Diameter
10 1/8″ (25.72 cm)
Shipping Weight
3.33 lbs (1.51 kgs)
Mounts Baffle
(T)51-8, (T)60-8(W), (T)61-8W, (T)62-8, 63-8, 67-8(W), 68-8W, 170-8, G22-8, T610-8W, T710-8, T720-8A, M222(W),TM222W, P900, 60-R
