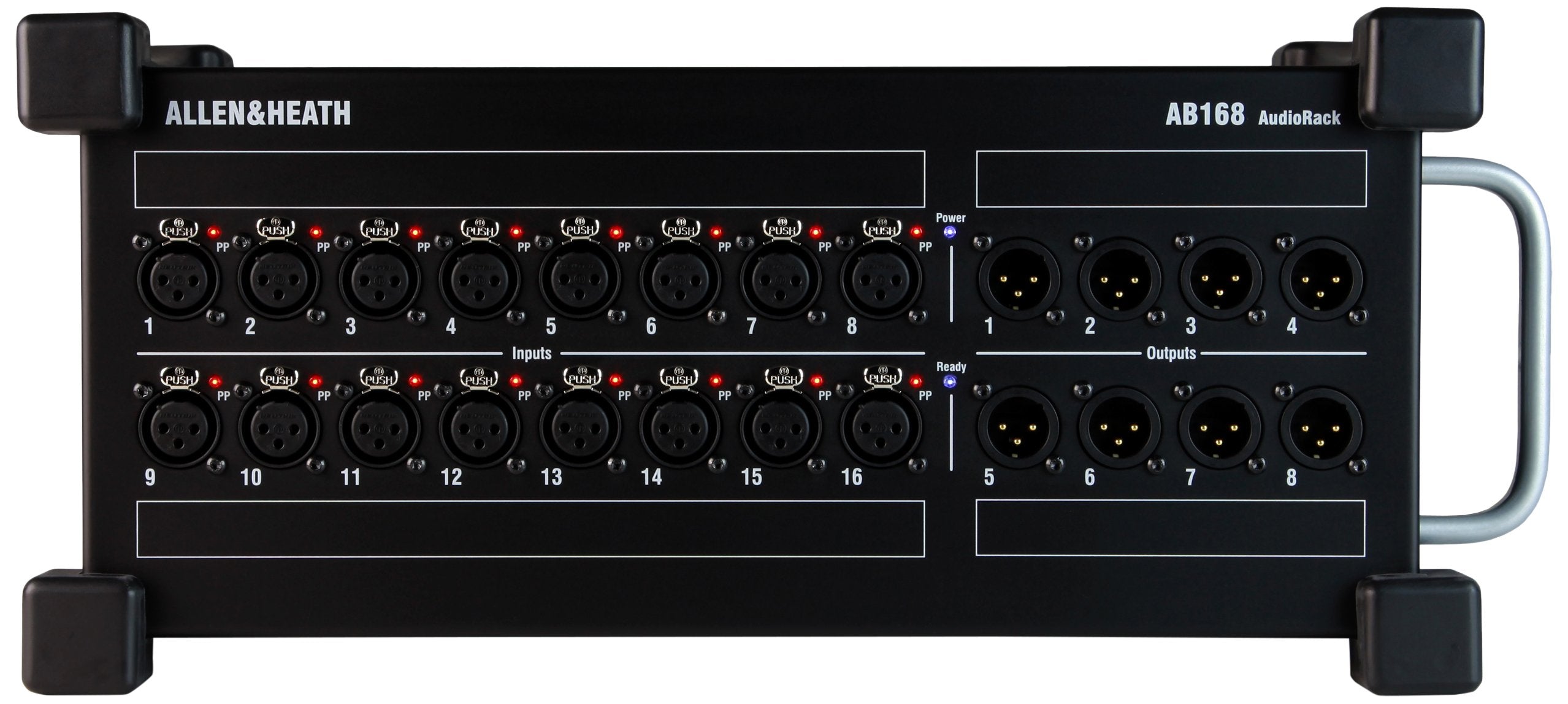

Allen & Heath AH-AB-168 | Portable Remote AudioRack GLD Qu Series Mixer

The Allen & Heath AH-AB-168 is a cutting-edge, portable remote AudioRack designed to elevate the professional audio experience for live and installation settings. This versatile unit seamlessly integrates with the renowned Allen & Heath GLD and Qu series mixers, making it an ideal choice for audio engineers and musicians looking to enhance their sound production capabilities. The AH-AB-168 features 16 high-quality mic preamps, each with Phantom Power indicators, and 8 XLR line outputs, providing ample connectivity options. Leveraging Allen & Heath’s proprietary dSNAKE protocol, this AudioRack ensures smooth, reliable communication with both Qu and GLD systems over a single Cat5 cable, extending the flexibility of positioning I/O up to 120 meters away from the mixer. A true testament to Allen & Heath’s commitment to innovation, the AH-AB-168 comes with an additional EtherCon port for daisy-chaining another unit or connecting a ME personal mixing system, along with an automatic firmware update feature to ensure seamless synchronization with the system.

Built to withstand the rigors of live performances, the AH-AB-168 features a rugged design complemented by sturdy rubber bumpers, making it roadworthy and durable. With its lightweight construction at just 4.8kg and a convenient carry handle, this AudioRack is highly portable, offering flexibility and convenience for sound professionals on the go. An optional rack mounting kit is also available for those who prefer a more permanent installation. Whether you’re setting up for a live concert, a corporate event, or an installation project, the Allen & Heath AH-AB-168 ensures top-tier performance and unparalleled ease of use.

Key Features

• 16 High-Quality Mic Preamps on XLR
• Compatibility with Allen & Heath GLD and Qu Series Mixers
• Innavidual Phantom Power LEDs per Input
• 8 XLR Line Outputs for Versatile Connectivity
• dSNAKE Connection with Secure Locking EtherCon Port
• Additional EtherCon Port for Daisy-Chaining or ME Personal Mixing System
• Rugged Design with Protective Rubber Bumpers
• Lightweight at 4.8kg with Carry Handle for Portability
• Optional Rack Mounting Kit Available

Specifications

• XLR Mic/Line Inputs: Balanced
• Mic/Line Preamp: Fully Recallable
• Input Sensitivity: -60 to +15dBu
• Analogue Gain: +5 to +60dB, 1dB Steps
• Pad: -20dB
• Maximum Input Level: +32dBu
• Input Impedance: >4kΩ (Pad Out) >10kΩ (Pad In)
• XLR Outputs: Balanced, Relay Protected
• Output Impedance: <75Ω
• Nominal Output: +4dBu = 0dB Meter Reading
• Maximum Output Level: +22dBu
• Residual Output Noise: -91dBu (Muted, 20-20kHz)
• Dimensions: 411.4mm x 154mm x 189mm
• Weight: 4.8kg

Package Contents

• 1 x Allen & Heath AH-AB-168 Portable Remote AudioRack
• 1 x Carry Handle
• 1 x Optional Rack Mount Kit (if purchased)
• 1 x User Manual
