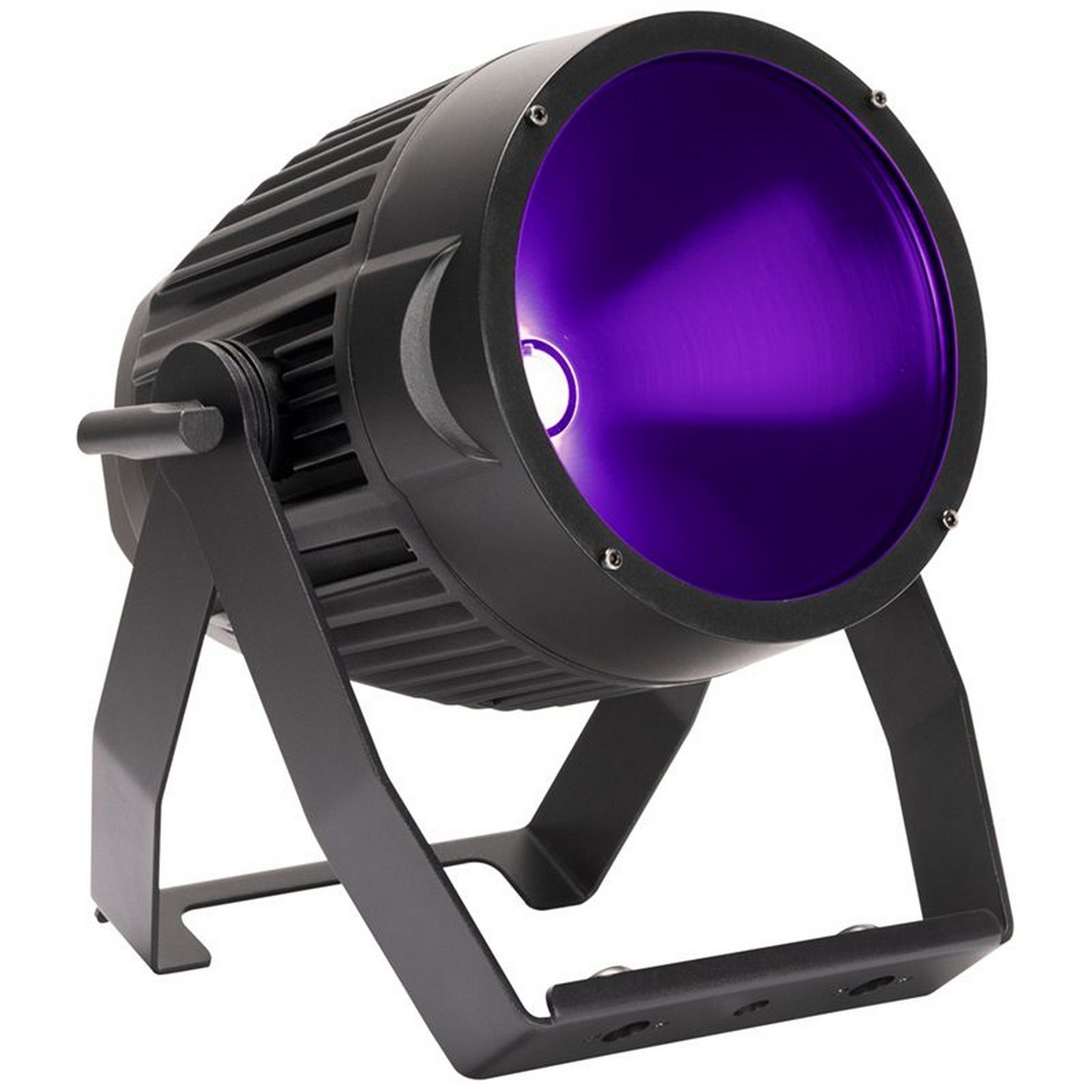

ADJ UV PAR 100IP – Outdoor UV COB LED Fixture

The ADJ UV PAR 100IP is a professional-grade ultraviolet LED PAR fixture, specially designed for outdoor environments. It features a robust build with an IP65 rating, making it resistant to dust, sand, and water. Powered by a high-output 100W COB UV LED, this fixture produces a 120° wide beam of brilliant UV light, perfect for creating vibrant glow effects in large spaces. With a wavelength of 390-399nm, it ensures stunning performance for stage productions, outdoor events, architectural lighting, and more.

Equipped with advanced control features, the UV PAR 100IP supports DMX and RDM protocols, allowing precise customization and remote configuration. The fixture includes four DMX channel modes and offers six preset dimming curves and speeds, ensuring smooth and versatile operation. Its adjustable LED refresh rates range from 900Hz to 25kHz, making it suitable for video and broadcast applications.

Designed with durability and convenience in mind, the UV PAR 100IP comes with a scissor yoke and omega bracket receivers for flexible mounting. The OLED display and touch menu provide intuitive navigation, while IP65-rated connectors ensure secure and weatherproof data and power connections. Whether you’re illuminating a large venue or highlighting architectural details, the ADJ UV PAR 100IP delivers unmatched reliability and performance.

Key Features

• Outdoor-rated IP65 ultraviolet LED PAR fixture
• 100W COB UV LED with 30,000-hour average lifespan
• 120° beam angle with 390-399nm wavelength
• DMX and RDM control protocols with 4-channel modes
• Six dimming presets and four dimming curves
• Adjustable LED refresh rates (900Hz-25kHz) for video applications
• Durable scissor yoke and omega bracket mounting options
• IP65-rated locking power and data connectors

Technical Specifications

Light Source: 1x 100W C.O.B. Ultraviolet LED
Beam Angle: 120°
Wavelength: 390-399nm
LED Lifespan: 30,000 hours

Control Protocol: DMX & RDM
DMX Modes: 4 (1, 2, 3, & 6 channel modes)
Dim Modes: 6 presets (Standard, Stage, TV, Architectural, Theatre, & Stage 2)
Dim Curves: 4 presets (Square, Linear, Inverse Curve, & S-Curve)
Dim Speed Control: 0.1–10 seconds
Strobe Control: Linear, Pulse, and Random
Refresh Rate: Adjustable (900Hz–25kHz)

Electrical: 100-240V 50Hz/60Hz (Auto Sensing)
Max Power Consumption: TBD

Connections:
– Data Input: IP65-rated 5-pin DMX In/Out
– Power Input: IP65 power locking In/Out with protective rubber caps

Physical:
– Outdoor Rated: IP65 (Dust & water protection)
– Safety Cable Loop: Included
– Mounting: Scissor yoke with omega bracket receivers (bracket sold separately)
Dimensions: 14.4” L x 12.4” W x 8.7” H
Weight: 14.11 lbs

What’s Included

• 1x IP65 6’ locking power cable

Approvals

cETLus (Control # 4010765)
CE Compliant
FCC Compliant
