ADJ MDF2 Single LED Dance Floor Square Buy Cheap Great Deals

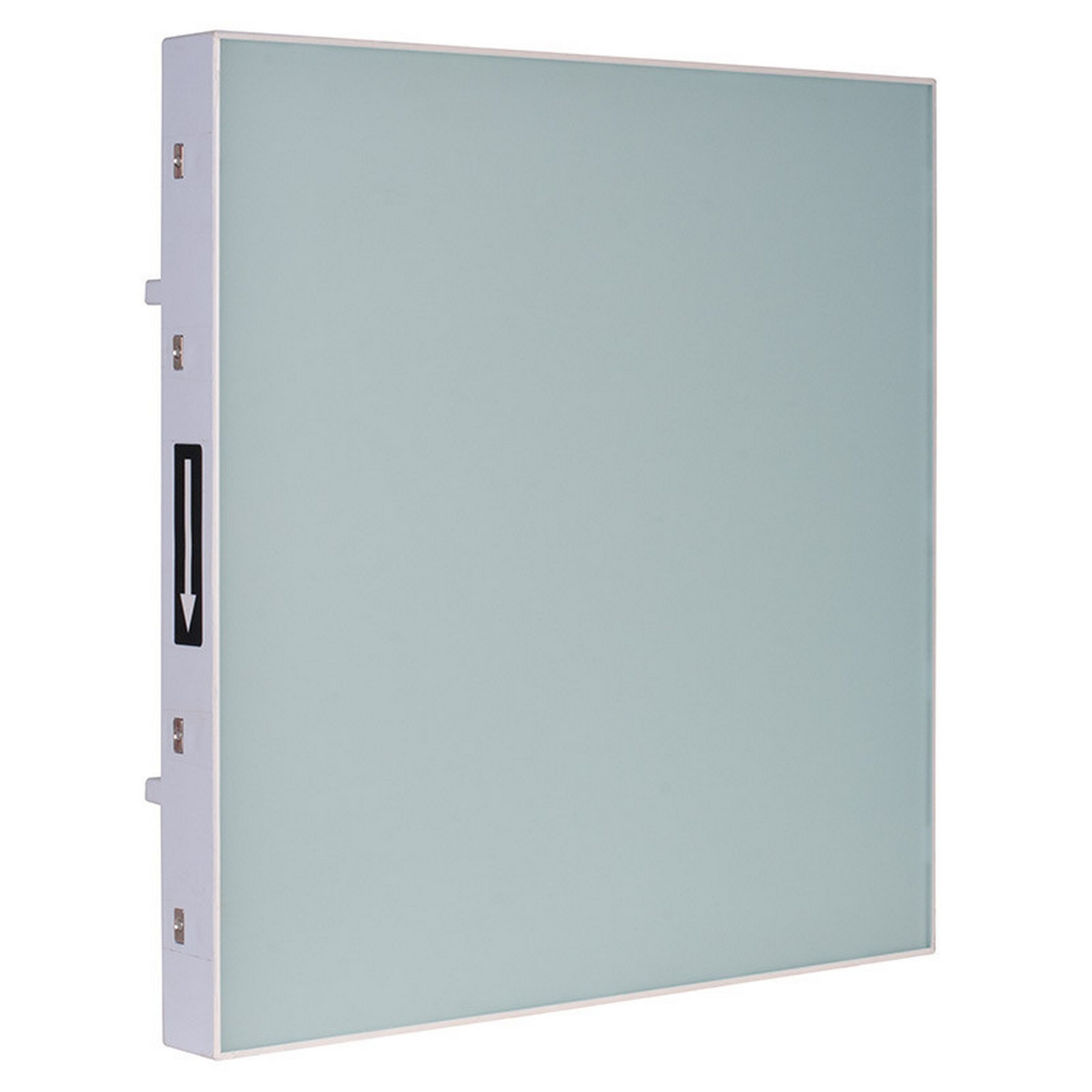

ADJ MDF2 Single LED Dance Floor Square

ADJ’s MDF (Magnetic Dance Floor) System is a robust, lightweight and extremely easy to setup portable LED dance floor solution. Each panel (MDF2) features an array of 3-in-1 RGB LEDs that cause its opaque tempered glass surface to glow intensely in an almost limitless selection of vibrant colors. With surface dimensions of 600mm x 600mm (23.62” x 23.62”) and a low height of just 70mm (2.76”), the innavidual panels weigh just 26.57 lbs. (12.05 kgs.) yet can support a weight of up to 300 kgs/m2 (61.5 lbs/ft2) more than enough for a dense crowd of party goers!

The panels fit together together quickly and easily thanks to an innovative magnetic locking system as well as a convenient cable-free power and data transmission arrangement that connects adjacent units in a row. Power and DMX control is then supplied to each row via a dedicated power ramp (MDF2PR) which features 3-pin XLR input and output sockets alongside proprietary 4-pin 24V DC power connections. Power is supplied to the system by a choice of dedicated power supply units designed to supply different quantities of panels (9, 15, 20 or 40), while a complete range of accessories is also available. These include edging ramps (for the three other sides) and corner ramps as well as a dedicated 9 panel flight case and special tool for lifting panels from the middle of a dancefloor.

Thanks to its easy-to-setup design, the MDF Series is ideal for temporary event use by mobile entertainment and event production companies. However, it is also suitable for permanent installation in nightclubs and bars looking to create a uniquely eye-catching dancefloor. The panels and accessories are all available innavidually, but can also be purchased in a complete pack of 9 panels (MDF433) complete with all cables, ramps and a flight case.

Technical Specifications

Light Source
RGB 3-IN-1 LED
Input Voltage
DC 24V
Max Power Consumption
15W
Input Signal
DMX512 (3-Pin XLR)
Control Mode
DMX512 Console, SD Controller (With DMX, Sound Control, Audio
Control and Remote Control)
DMX Channel Mode
3, 5, 7, & 10 Channel Mode
Visual Angle
160
Brightness
High Brightness
Surface Material
Tempered Glass
Base Material
ABS
Bearing Weight
61.5 lbs./ft2 (300 kgs/m2)
Working Temperature
-4~113F (-20~45C)
Single panel Dimensions (LxWxH)
23.62” x 23.62” x 2.76” / 600x600x70mm
Single Panel Weight
26.57 lbs./ 12.05 Kgs
