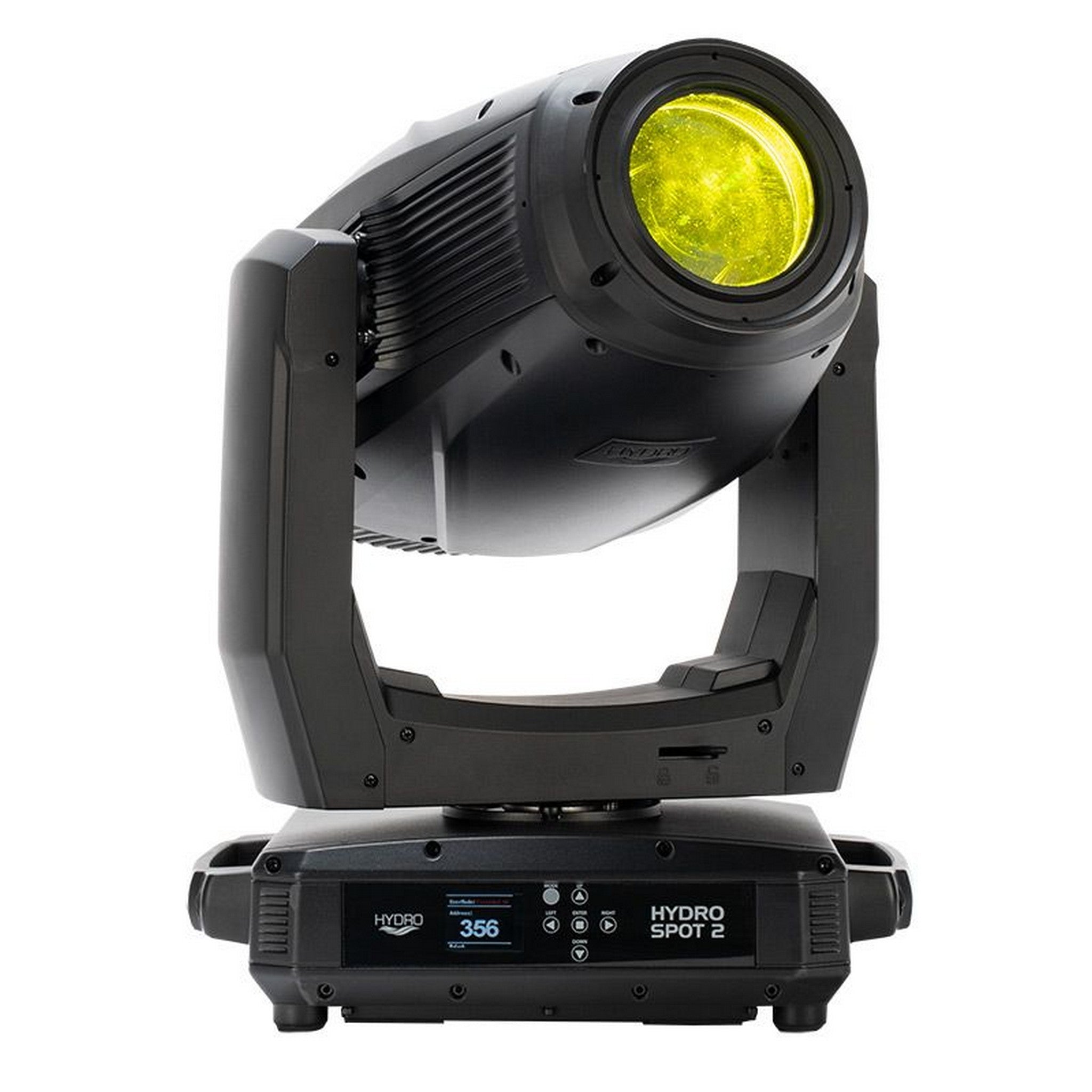

ADJ Hydro Spot 2 320-Watt Cool White LED Moving Head Fixture

Harnessing the power of a high output 320-Watt cool white LED engine, focused through precision-engineered optics, the ADJ Hydro Spot 2 is a powerful and versatile professional moving head luminaire. It combines an expansive feature set with a robust IP65-rated construction to deliver a fixture that is ideal for temporary event production both indoors and outside in any weather. It is also suitable for permanent installation within all kinds of venues, from concert halls to nightclubs, theatres to churches, where its sealed casing design protects its internal components from dust and grime to allow for a reduced maintenance schedule and prolonged operational life expectancy.

Motorized zoom allows the fixture’s beam angle to be altered between a tight 8-degrees and wide 41-degrees, while two frost filters can also be applied to soften the beam edges and further widen the beam angle. The medium frost filter is designed to lightly blur the edges of GOBO/prism effects, while the heavy frost filter allows the fixture to be used for wash lighting duties. An almost limitless spectrum of colors can be generated by the fixture thanks to CMY color mixing, while a separate variable CTO flag allows for color-corrected white light output. In addition, a color wheel is also provided with seven dichroic color filters, including CTB and High CRI options.

The Hydro Spot 2 offers two independent GOBO wheels, one with 8 static patterns and the other with seven rotating and replaceable GOBOs (either aluminum or glass). Motorized focus can be used to ensure patterns remain sharp across varying projection distances while dynamic effects can be produced using the integrated animation wheel. Wider surface projection and aerial beam effects can be generated using a choice of two indexed, rotating prisms: 5-facet linear or 6-facet circular. Finally, the fixture’s 15,000 lumen white light LED engine allows for smooth 0-100% digital dimming (with a choice of modes and curves) as well as variable speed strobe effects.

Key Features

• Motorized Focus
• 2 Frost Filters
• Motorized Zoom: 8° ~ 41°
• Animation Wheel
• 2 Prism FX: Rotating 5-facet Linear & rotating 6-facet Circular
• 0-100% smooth dimming
• Various strobe speeds
• 2 cooling fans

Technical Specifications

Light Source
320W Cool White LED Engine (50,000 hr.)
15,000 Lumens
Color
CMY color mixing system
Variable CTO flag
Color wheel with 7 dichroic colors + white (includes CTB and High CRI filters
Gobo Wheels
(1) Rotating Gobo wheel with 7 Gobos
(1) Static Gobo wheel with 8 Gobos
All Gobo’s on rotating wheel are replaceable
Gobo Shake Effect on both wheels
Aluminum Gobo size
23mm (outer); 19mm (viewable); 0.5mm (thickness)
Glass gobo size
23mm (outer); 19mm (viewable); 3.3mm (thickness)
Prism Wheel
Prism Wheel 1
Rotatable 6-facet Circular
Prism Wheel 2
Rotatable 5-facet Linear
Both Prisms are indexable
Frost Filters
Frost 1
Heavy frost for wash effect
Frost 2
Medium frost creates lightly blurred edges for Gobo and Prism FX
Control
3 DMX Channel Modes
23/27/34
Color LCD display with 6-button function menu
Control Mode
DMX512 or internal programs
6 Dim Modes
Standard, Stage, TV, Architectural, Theatre, Stage2
4 Dim Curves
Square, Linear, Inv. Square and S. Curve
Selectable LED Refresh Rates (900 Hz~25K Hz)
0-100% smooth dimming
Various strobe speeds
RDM (Remote Device Management)
With Wired Digital Communication Network
Pan/Tilt
Pan
630 degrees
Tilt
270 degrees
Connections
DMX Connections
5-pin XLR In/Out
Power Connections
IP65 PowerLock In/Out to daisy chain power
Electrical
Multi-voltage operation
90-240V, 50/60Hz
Max power consumption
400W
Dimensions & Weight
Dimensions (LxWxH)
11.42” x 16.70” x 23.51” (290x424x597mm)
Weight
57.2lbs (26kg)
What’s Included
Omega Bracket
1.83M locking power cable
Approvals / Rating
ETL Approved / CE Certified
IP65 with Marine Coated Exterior and conformal coated p.c.b’s
