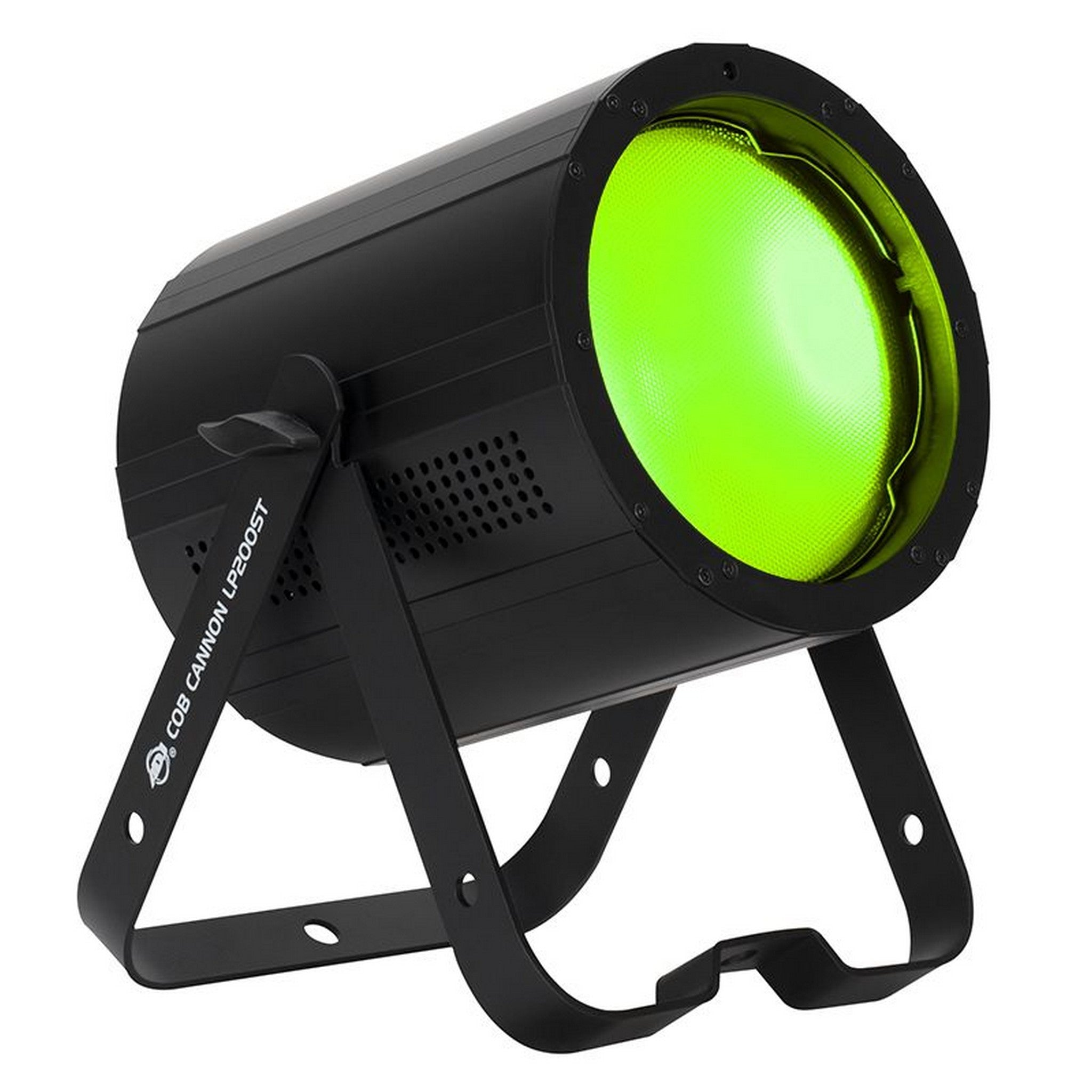

ADJ COB Cannon LP200ST 200-Watt Color Mixing Wash LED Lighting Fixture

The ADJ COB Cannon LP200ST is a powerful and flexible professional wash lighting fixture that can be used for a wide variety of applications. It harnesses the power of an efficient 200-Watt COB (Chip on Board) RGBAL (red, green, blue, amber and lime) LED light source, which generates a potent and even output with no color shadows. This efficient light engine combines red, green, blue, amber and lime LED chips to allow the creation of a huge gamut of colors as well as white light with a variable color temperature of between 2300K and 9900K. The inclusion of the lime LED chip helps certain colors to appear more vivid and also boosts the CRI to in excess of 90.

Offering a wide native beam angle of 80-degrees, allowing a large area to be washed with vibrant colored light, the fixture is also supplied with a useful lens kit. This comprises both 40-degree and 50-degree lens options, which easily and securely clip to the front of the fixture to provide a narrower beam angle when required. For easy integration into an existing control system, both 3-pin and 5-pin DMX input and output sockets are included on the unit’s rear panel. There are also locking power input and output sockets, which can be used to connect up to three fixtures to a single power outlet. It is also supplied with a flexible scissor yoke, which can either be used as a hanging bracket or floor stand, and barn doors for directing the light output are available as an optional accessory.

Key Features

• Light Source: 1x 200-Watt COB (Chip on Board), RGBAL (Red, Green, Blue, Amber & Lime), LED Engine
• Primary / Secondary Mode
• Flicker Free operation (No flickering on camera)
• Produces powerful, smooth RGBAL color mixing with rich palettes of color
• Scissor yoke allows fixture to be mounted on truss or set on the ground
• Optional Barn Doors (BAR001) sold separately

Technical Specifications

OPTICAL
Light Source
1x 200-Watt COB (Chip on Board), RGBAL (Red, Green, Blue, Amber & Lime), LED Engine
LED Engine Life Rating
Approximately 50,000 hrs.
CRI
>90
Color Temperature
2300~9900K
80-degree beam angle
Includes lens kit to change to 40-degrees or 50-degrees beam angle
FEATURES
Primary / Secondary Mode
Flicker Free operation (No flickering on camera)
Produces powerful, smooth RGBAL color mixing with rich palettes of color
Scissor yoke allows fixture to be mounted on truss or set on the ground
Optional Barn Doors (BAR001) sold separately
CONTROL
10 DMX Channel modes (5, 8, 9, 10Ch-A, 10CH-B, 11, 12, 14, 17 and 21CH)
Linear color temperature control via DMX
Built-in color temperature presets accessible via DMX
64 built-in color macros
4-button OLED digital DMX display on rear panel
Compatible with the ADJ UC IR remote control (included)
LED pulse and strobe effect
Electronic Dimming
0 – 100%
6 selectable Dim Modes (Standard, Stage, TV, Architectural & Theatre)
4 selectable Dim Curves (Square, Linear, Inv. Squa & S.Curve)
Adjustable selectable Refresh Rate (14 presets from 900 – 25,000Hz)
CONNECTIONS
3-pin & 5-pin XLR connectors for DMX data linking
Indoor locking power in & Out connections to daisy chain power
USB Service Port
ELECTRICAL
Auto sensing power supply
AC 100V/60Hz – 240V/50Hz
Power Draw
175W max
Daisy chain up to 7 fixtures (120V) or 14 fixtures (230V) maximum
DIMENSIONS / WEIGHT
Dimensions (LxWxH)
13” x 10” x 7.5” / 330x256x190mm (With bracket); 8.75” x 7.5” x 7.5” / 218.5x190x190mm (Without bracket)
Weight
9.26 lbs. / 4.2 kg.
WHAT’S INCLUDED
(1) 50-degree lens
(1) 40-degree lens
UC IR Wireless Remote
Power Cord
Scissor Yoke
ACCESSORIES
BAR001 – COB Cannon Wash Barn Doors
RATING / APPROVALS
cETLus Approved (#4002034)
