ADJ COB Cannon LP200 200-Watt COB LED Engine Best Place To Buy Online

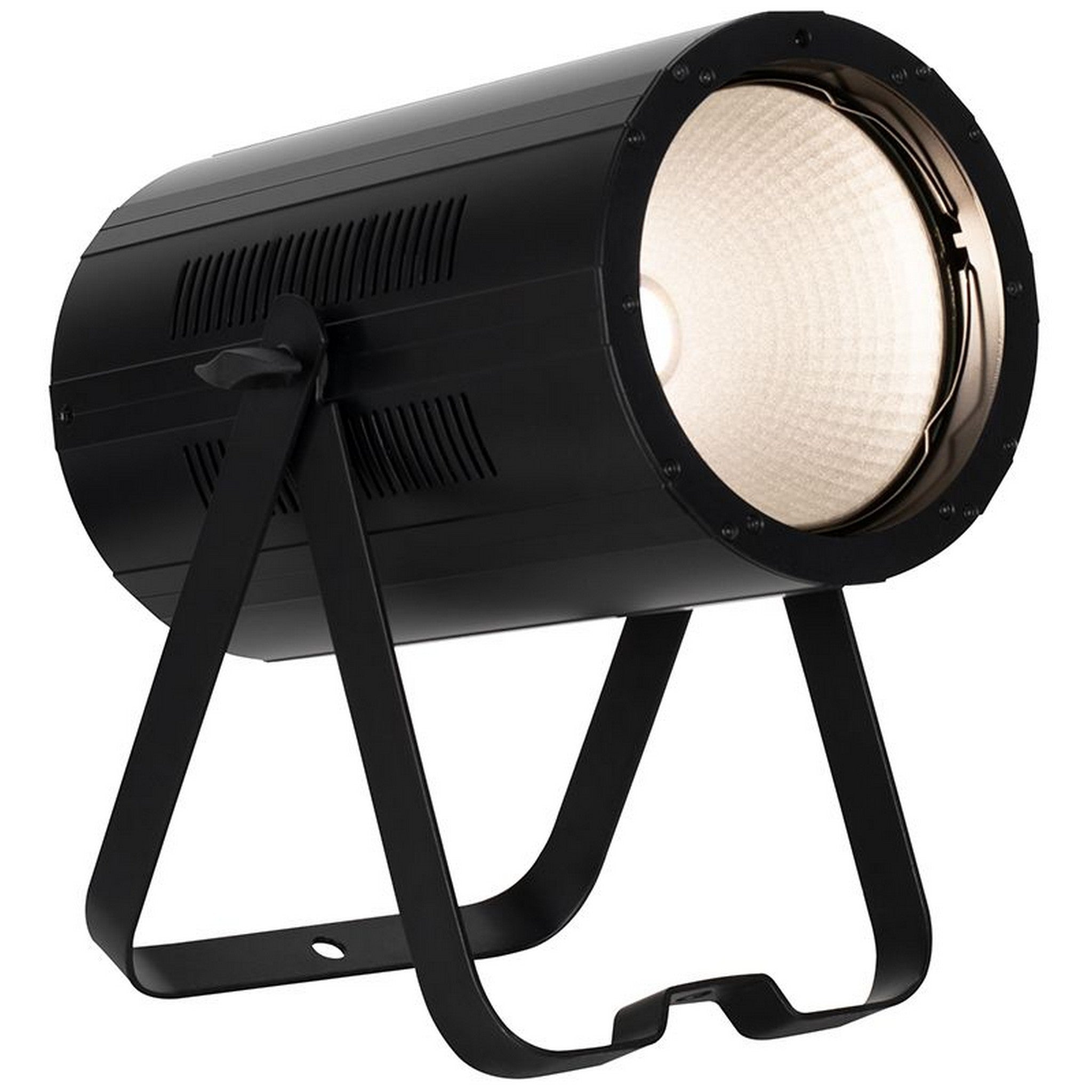

The ADJ COB Cannon LP200 200-Watt COB (Chip On Board) LED engine stands out as a versatile and robust professional wash lighting fixture suitable for a naverse range of applications. Its core features include a potent 200-Watt COB (Chip On Board) RGBAL (red, green, blue, amber, and lime) LED light source, providing a uniform and powerful output devoid of color shadows. This innovative lighting engine integrates red, green, blue, amber, and lime LED chips, facilitating the creation of an extensive color palette and tunable white light spanning from 2300K to 9900K. The incorporation of the lime LED chip enhances color vibrancy and elevates the Color Rendering Index (CRI) to over 90.

With a generous native beam angle of 80 degrees, the fixture ensures broad coverage for vibrant colored illumination. It comes equipped with a practical lens kit comprising 40-degree and 50-degree lens options, allowing for easy attachment to achieve a narrower beam angle as needed. For seamless integration into existing control systems, the unit features 5-pin DMX input and output connectors on the rear panel. Additionally, locking power input and output sockets enable linking up to three fixtures to a single power source. The package includes a versatile scissor yoke for use as a hanging bracket or floor stand, while optional barn doors are available for precise light direction. An Omega Bracket is provided for vertical mounting of the fixture as a pendant light.

Key Features

• Main / Auxiliary Mode
• Camera-friendly operation with no flickering
• Delivers vibrant RGBAL color mixing with a wide range of color options
• Versatile mounting options with the scissor yoke for truss or ground placement
• Barn Doors (BAR001) available as an additional purchase option

Technical Features

OPTICAL:
Light Source
1x 200-Watt COB (Chip on Board), RGBAL (Red, Green, Blue, Amber & Lime), LED Engine
LED Engine Life Rating
Approximately 50,000 hrs.
CRI
>90
Tunable White Color Temperature
2300~9900K
Beam Angle
80-degree
Lens kit to change to 40-degrees or 50-degrees beam angle
Included

CONTROL:
10 DMX Channel modes (5CH, 8CH-A, 8CH-B, 9CH, 10CH-A, 10CH-B, 12CH, 13CH, 16CH, 20CH)
Linear color temperature control via DMX
Built-in color temperature presets accessible via DMX
64 built-in color macros
4-button OLED digital DMX display on rear panel
Compatible with the ADJ UC IR remote control (included)
LED pulse and strobe effect
Electronic Dimming
0 – 100%
6 selectable Dim Modes (Standard, Stage, TV, Architectural & Theatre)
4 selectable Dim Curves (Square, Linear, Inv. Squa & S.Curve)
Adjustable selectable Refresh Rate (14 presets from 900 – 25,000Hz)

CONNECTIONS:
5-pin XLR connectors for DMX data linking
Indoor locking power In & Out connections to daisy chain power
USB Service Port

ELECTRICAL:
Auto sensing power supply
AC 100V/60Hz – 240V/50Hz
Power Draw
175W max
Daisy chain
Up to 5 fixtures (120V) or 10 fixtures (230V) maximum

DIMENSIONS / WEIGHT:
Dimensions (LxWxH)
16.25”x9.75”x7.5” / 415x245x192mm)
Weight
9.45 lbs. / 4.30 kg.

WHAT’S INCLUDED:
(1) 50-degree lens
(1) 40-degree lens
UC IR Wireless Remote
Power Cord
Scissor Yoke
Omega Bracket

ACCESSORIES:
BAR001 – COB Cannon Wash Barn Doors (not included)

RATING / APPROVALS:
cETLus (Pending)
