Adaptive Technologies SB-14 14 Inch Speaker and Line Array Rigging Swivel Beam Clearance Footaction

Adaptive Technologies SB-14 14 Inch Speaker and Line Array Rigging Swivel Beam

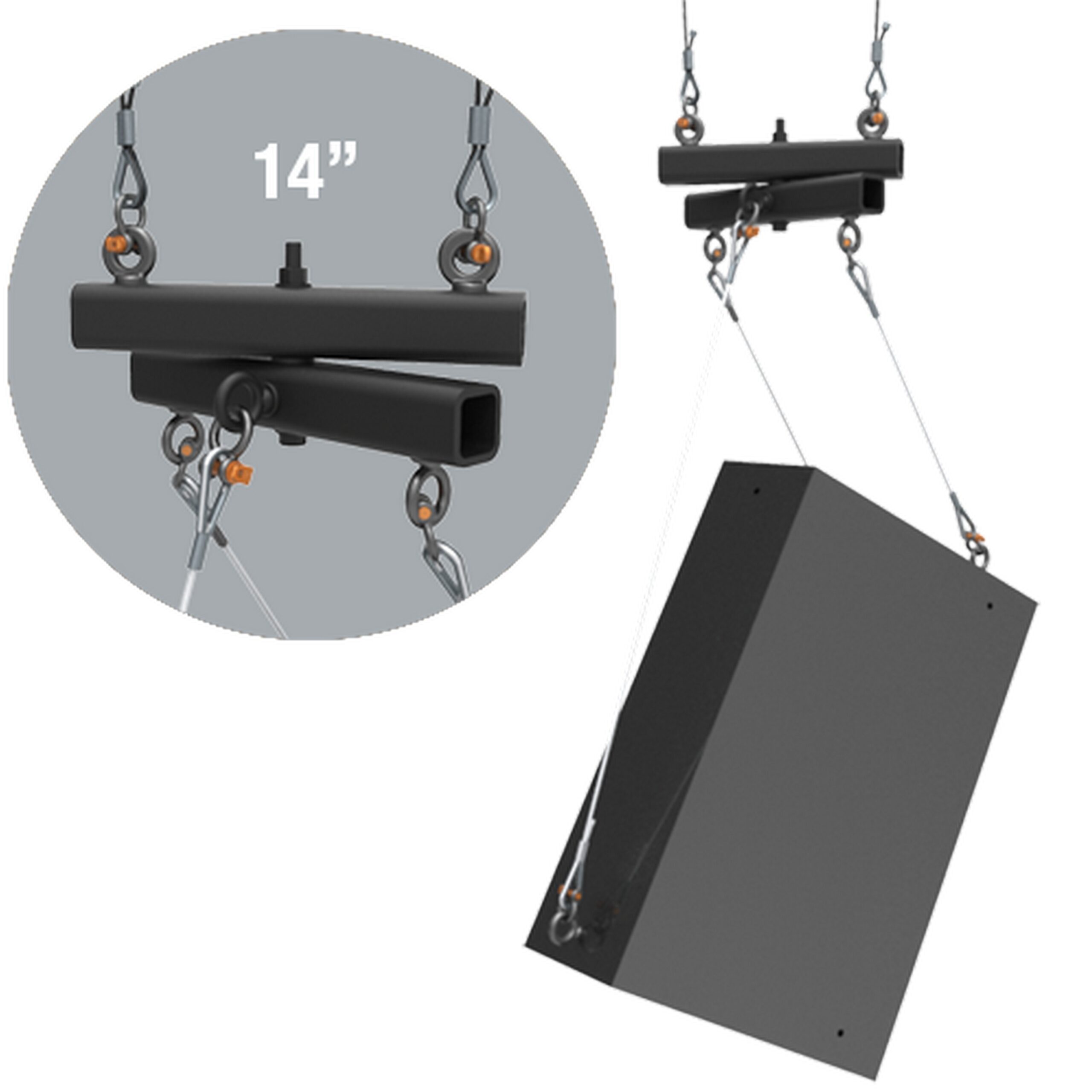

The SwivelBeam is an easy to use load-rated and off the shelf loudspeaker rigging and aiming system from single loudspeakers to full line arrays. It is ideal for aiming sound in left and right of house configurations and provides side and backfills where speakers cannot be wall mounted. The upper cross arm of the SwivelBeam rigs from two overhead suspension points. The lower cross arm supports the loudspeaker and rotates relative to the upper section, horizontally, up to 360. This gives the installer precise horizontal aiming of sound. For precise vertical aiming, a self-contained cabinet located behind the lower cross arm. Typical venues include theatres, churches, school auditoriums, gymnasiums, sport arenas, meeting halls and theme park attractions.

Key Features

• Central pivot for steering
• Rear pull back point for tilting
• Rugged Steel Construction
• Powder Coat Finish

Technical Specifications

Material
Alloy Structural Steel Tube
Finish
Powder Coat Paint
Color
Black
WLL
685 lb / 311 Kg
Design Factor
5:1
Pack Count
1/carton
